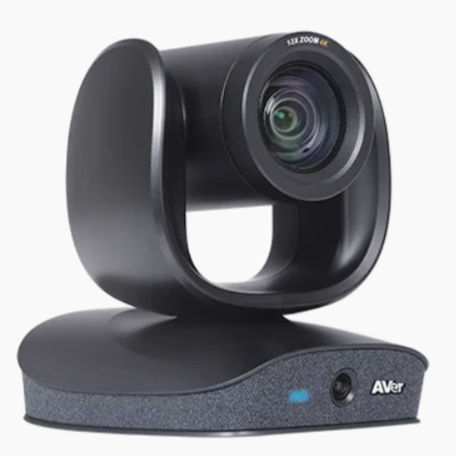

Dual Camera

PTZ optical zoom lens

• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• 36X Zoom*: 12X optical; 3X digital zoom
• Wide field of view: DFOV 90°/ HFOV 78°/ VFOV 50°
• Lens focal length: 3.4mm (wide) ~ 40.3mm (tele)
• Lens F#: 1.8 (wide) ~ 3.6 (tele)
• Wide Dynamic Range (WDR): Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Minimum focus distance: 1.5m
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
• Preset number: 10 via IR remote, 128 via RS-232
• Image flip and image mirror

Secondary fixed lens (AI lens)

• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 82°; VFOV 52°

Innovative features

• SmartSpeaker: automatically track human voice and focus on the speaker
• Dynamic detection: secondary AI lens detects all participants
• new participants trigger PTZ lens to dynamically frame all participants.
• Presentation tracking: voice-triggered tracking speaker with both preset area and people tracking*
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• Smart gallery** function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
• 3rd party audio tracking support***: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yahama) via AVer Preset Link** function.

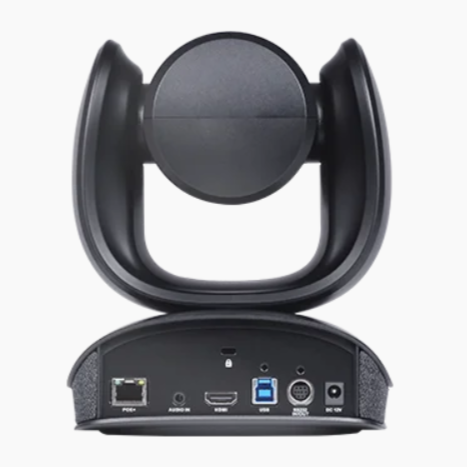

Connectivity

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter
• Type Non-B Mini DIN 9 for RS-232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI
• Audio in* (1Vrms input)

Audio Sensor

• Audio pick-up range: 10m, ±60°
• 3 pairs of sensor, each composed of 4 sensors

HDMI & PoE

• HDMI 1.3: 1080p 30fps/ 60fps
• PoE+: 802.3at

Video Format

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocol: RTSP, RTMP

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

Control

• IR remote control
• VISCA/pelco P/pelco D via RS-232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome. (Not support IE)
• OSD setting: HDMI out to TV monitor
• Room Management (PTZApp 2)

Power Supply

• AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
• PoE+: 802.3 at

Software Tools

• Room Management (PTZApp 2) : Supports Windows® 7 or later, macOS® 11.6 or later
• Enterprise Management (PTZ Management) : Supports Windows® 10 or later
• Cloud Management : Supports Windows® 7 or later, macOS® 10 or later
• EZManager 2 : Supports Windows® 7 or later
• EZLive : Supports Windows® 7 or later

Environment Data

• Operation temperature: 0 to 40°C
• Operation humidity: 20% to 80%
• Storage temperature: -20 to 60°C
• Storage humidity: 20% to 80%

Dimensions

• Package dimensions: 253(L)*253(W)*271(H) mm
• Package weight: 4.8KG
• Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
• Remote control: 200 x 50 x 21mm/90g

Security and Mount

• Kensington lock
• 1/4' tripod mounting screw
• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

System Requirements

• Windows® 7/10/11
• Mac OS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

Hardware Specs

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
